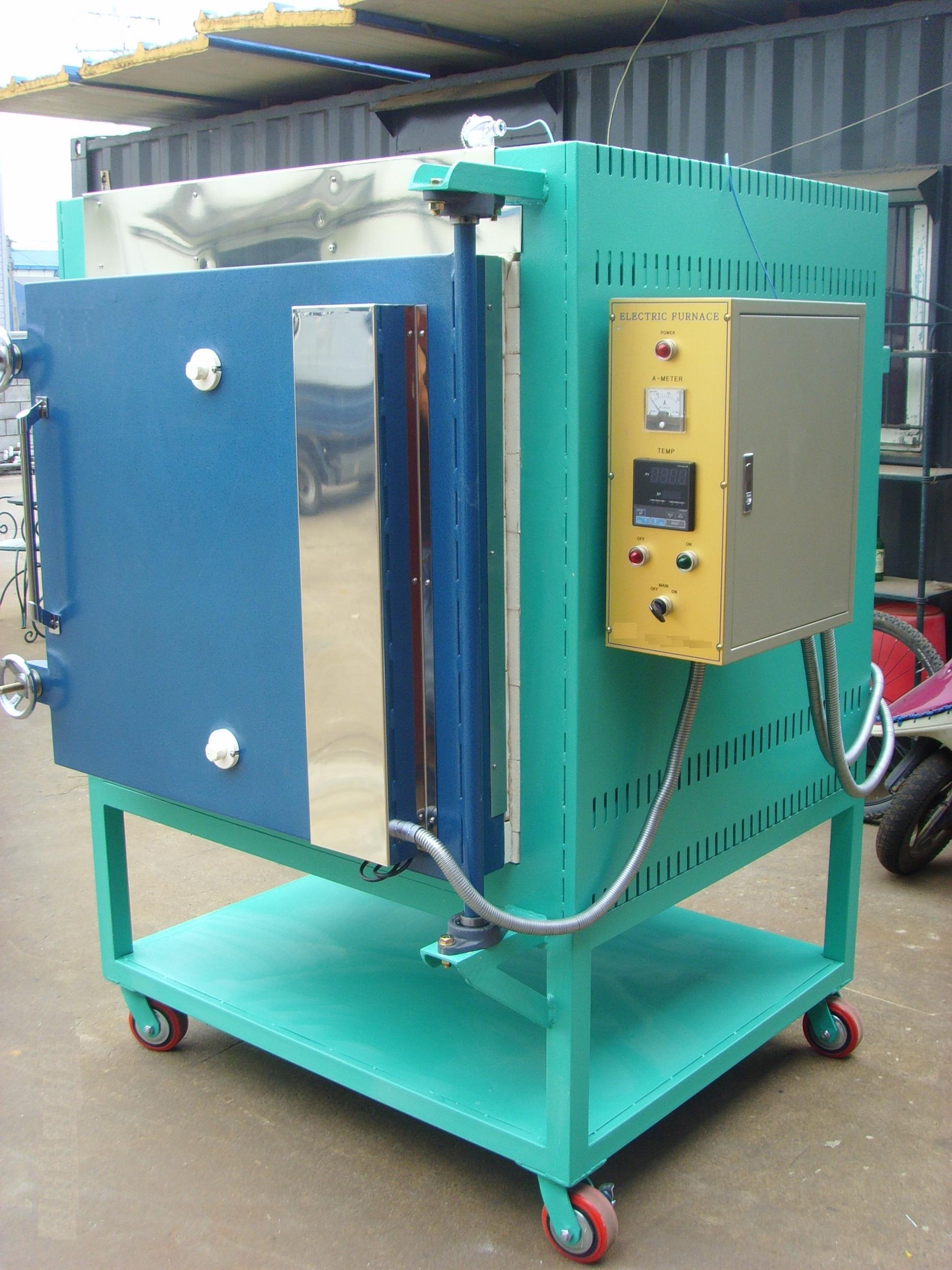

RED FL Series  Electric Front Loading Furnace


APPLICATIONS

The RED FL Series  furnace is an excellent general purpose              Front Loading furnace .

FEATURES

Kanthal  A-1 Elements or same Grade.

The elements are coiled Kanthal A-1 Elements.  We always best  low watt density  is used for long element life.

Side wall, Back wall, door, Bottom  five side Elements. .

EFFICIENT  INSULATION

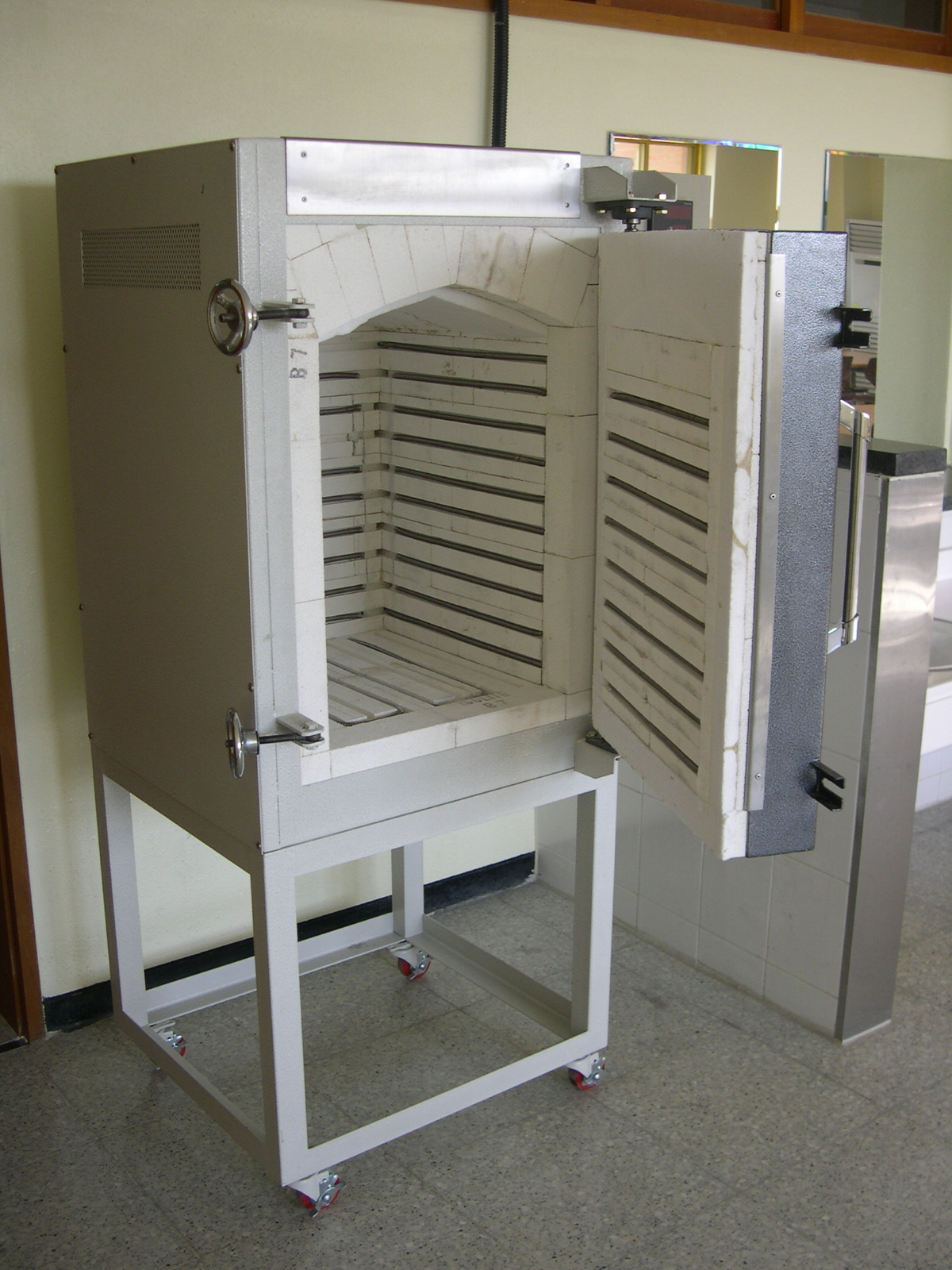

The furnace is insulated with 2-1/2” of B7 refractory firebrick as the primary insulation. This is backed up by 1” of very low K factor mineral wool board on all surfaces except the bottom which has 2” of hard calcium silicate back up for solid hearth support. This yields an excellent combination of strength, insulating quality and fast heat up and cool down time. The refractory sections are available completely shaped for easy replacement without cementing. All sections fit together with engineered heat locks which improve the insulating integrity of the furnace. No asbestos is used.

GOOD FURNACE UNIFORMITY
The temperature uniformity +/-30F (+/-16C) when measured 2” in from all corners. Uniformity is +/-20F (+/-11C) within 12” space front to back (5” from front and 1” from back.)

HEAVY DUTY  CASE
The furnace case is constructed of 14 and 16 gauge steel.

DIGITAL PID CONTROL SYSTEM
The standard control is a Yokogawa UP350 or UP550 Control. A. The thermocouple is Type R.  and Magnetic or S.S.R. S.C.R. Unit option available.

TESTING AND INSTRUCTIONS
The furnace is power tested to insure proper operation. A complete instruction manual includes easy start up instructions, theory of operation, maintenance instructions.

WARRANTY
The furnace is warranted for one year except for elements and thermocouples.

OPTIONS

  • CONTROL, RECORDER AND ELECTRICAL OPTIONS
  • S.S.R. S.C.R. Magnetic Control Option
  • VENT HOLES: Various diameter vent holes with or without ceramic plugs are available per special request.


SPECIFICATIONS

MODEL INSIDE DIMENSIONS Inside Volume STANDARD
K.W.
AMPS AT 220V SHIP WEIGHT
NUMBER IW IH ID Cubic Meter Kilo Watt Amps KG.
RED FL -0.1 450 500 450 0.1 9.0  41 Amps
RED FL-0.15 500 670 500 0.15 12 55Amps
RED FL-0.2 550  800 500 0.2 15  68Amps
RED FL-0.3 550 750 800 0.3 22 100Amps
RED FL-0.5 850 780 800 0.5 40 181Amps
RED FL-0.7 950 860 900 0.7 60 272Amps
RED FL-1.0  850 1250 1000 1.0 75 340 Amps
RED FL-1.5 950 1400 1200 1.5 110 500Amps
RED FL-2.2 1000 1600 1400 2.0 140 636 Amps
Dimensions are in mm.  Weight is in Kgs. Standard voltage is 220 volt  single phase  or 380  3Phase.  Working dimensions should be approximately 40mm less in each direction than inside dimensions. Specifications subject to change without notice.
